Hardware

Full specifications

Processor: AMD Ryzen AI MAX+ PRO 495, 16 cores, 32 threads
Unified memory: 128 GB or 192 GB LPDDR5X-8533, 273 GB/s
GPU: AMD Radeon AI PRO R9700, 32 GB GDDR6, 640 GB/s
Storage: 2 TB or 4 TB NVMe
Power supply: 1,000 W SFX, 80 PLUS Platinum
Cooling: Air-cooled, two independent air paths
Network: 10 GbE Ethernet, Wi-Fi 7, Bluetooth, optional 100 GbE cluster kit
Ports: 2× USB4, 4× USB-A, HDMI 2.1, DisplayPort 1.4, plus 4 display outputs on the GPU
Size and weight: 340 × 110 × 320 mm, 11.97 L, 6 kg
Enclosure: Extruded aluminium, anodized black
Software: Ubuntu Server, engine and tuned models pre-installed
Warranty: 1 year, parts and labor

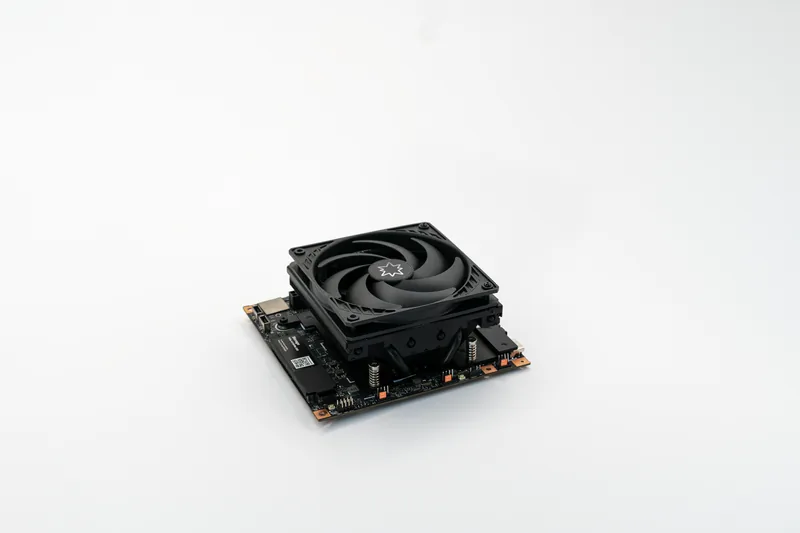

The compute board with its 120 mm cooler mounted

01Compute platform

AMD Ryzen AI MAX+ PRO 495 with up to 192 GB of unified memory

The Ryzen AI MAX+ PRO 495 shares 128 GB or 192 GB of LPDDR5X-8533 between the CPU and its 40-core Radeon 8065S integrated GPU at 273 GB/s. Models that do not fit in 32 GB of VRAM run here: long context, MoE models such as DeepSeek V4 Flash, or a second model kept resident while the R9700 serves the hot path.

Memory	128 GB or 192 GB LPDDR5X-8533, shared by CPU and integrated GPU
Bandwidth	273 GB/s
Integrated GPU	Radeon 8065S, 40 compute units
Processor	AMD Ryzen AI MAX+ PRO 495, 16 cores / 32 threads
Role	Large models, long context, and the second resident model

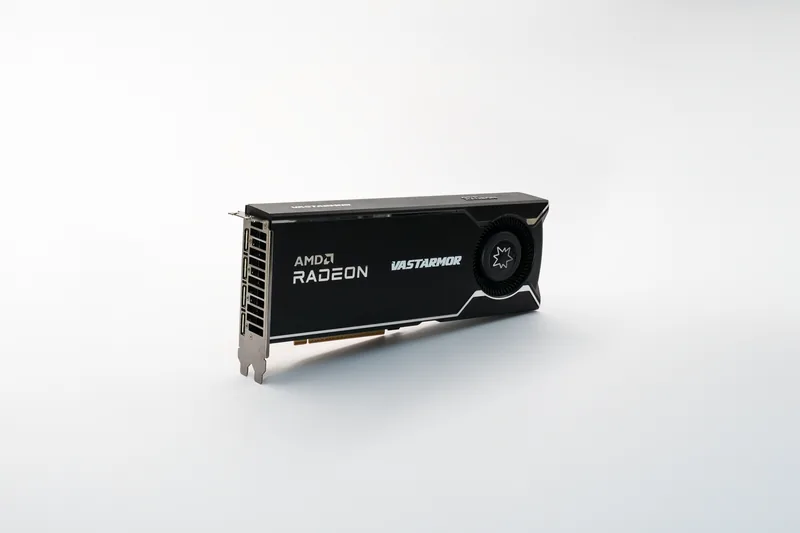

02Dedicated GPU

AMD Radeon AI PRO R9700

The only discrete GPU in the production configuration. 32 GB of GDDR6 at 640 GB/s keeps the weights and KV cache of a 27B-class model on the card, which is where the engine’s custom kernels and DFlash speculative decoding run.

Memory	32 GB GDDR6
Bandwidth	640 GB/s
Compute	64 compute units, up to 191 TFLOPS at FP16
Board power	Up to 300 W under sustained inference
Interface	PCIe 4.0 through an M.2 NVMe to x16 riser on the compute board

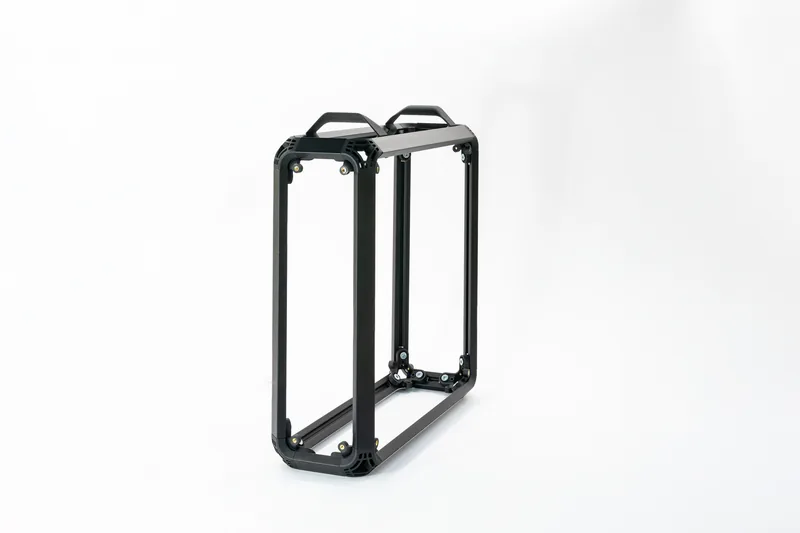

The bare extruded aluminium frame of the chassis, anodized black, before the panels go on

03Enclosure

Extruded aluminium chassis, anodized black

Every chassis is extruded aluminium, anodized black, and hand-assembled in-house. At 11.97 litres it holds a full-length workstation GPU, the compute board, and an SFX power supply in a box that fits a shelf or a rack area.

Enclosure	Extruded aluminium, anodized black, hand-assembled in-house
Dimensions	340 × 110 × 320 mm (13.4 × 4.3 × 12.6 in)
Volume	11.97 L (approximately 730 in³)
Weight	6 kg (13.2 lb)
Finish	Anodized black

Thermal camera time-lapse: the processor package warms from 23 to 42 °C as inference starts

04Cooling and thermals

Two air paths, exhaust out the back

A 120 mm fan cools the compute region and the R9700 runs its own cooler, each with an independent airflow path that exits through the rear. Quiet at idle; the GPU becomes audible during sustained inference, which is why most people keep Lucebox out of earshot and reach it over the network.

Cooling	Air-cooled, tuned for low noise under sustained load
Compute region	120 mm top fan over the compute board
GPU	R9700 cooler on its own airflow path
Exhaust	Hot air leaves through the back of the chassis
Acoustics	Quiet at idle, GPU cooling audible under sustained inference

05The rest of the machine

Power, storage, expansion and connectivity.

Power

Output: 1,000 W, SFX form factor
Efficiency: 80 PLUS Platinum
Draw: ~500 W under full inference load, ~40 W idle
Mains input: IEC C14 inlet, plugs into a standard wall outlet
Power button: Momentary chassis switch wired to the board header

Storage

Capacity: 2 TB, or 4 TB as an option
Interface: NVMe 1.4, M.2
Throughput: Up to 7,400 MB/s read, 6,600 MB/s write
Contents: Ubuntu Server, Lucebox engine, tuned model profiles, your own GGUF weights

Expansion

M.2 slot 1: PCIe 4.0 x4, holds the NVMe drive
M.2 slot 2: PCIe 4.0 x4, carries the R9700 through its riser
SFF-8654: PCIe 4.0 x4 for an extra card (experimental)

Connectivity

Ports: 2× USB4, 2× USB-A 3.2 Gen 2, 2× USB-A 2.0, HDMI 2.1, DisplayPort 1.4, 10 GbE Ethernet, plus 4 display outputs on the GPU
Wireless: Wi-Fi 7 and Bluetooth 5.4, built in
Clustering: Optional cluster kit per machine: Mellanox ConnectX-5 CX556M, 2× 100 GbE, installed, cable included
Setup: Bluetooth pairing from a phone or laptop, no monitor needed
Wi-Fi: MediaTek MT7925 on an M.2 2230 card, 2×2 on 2.4, 5 and 6 GHz
Wi-Fi speed: Up to 2.9 Gbps link rate on 160 MHz channels, with multi-link operation
Bluetooth: Bluetooth 5.4 on the same card
